| Nominal diameter (mm) | External Dimensions (mm) ΣD~L | Weight (ton) | Power (KW~V~set) | Torque (tf-m) | Revolution (rpm) | Steering Jack (tf~st~set) | Max correction angle Vertical/horizontal | Hydraulic unit (KW~V) | Piping in shield body (A) | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||||||||
| 600 |
790~2640 (2520) |
3.9(3.6) |
7.5~400~2 |
18.6 |
15.7 |
7.6 |
9.1 |
160~20~4 |
2.3 |
0.75~400 |
100 |
| 700 |
910~2710(2595j |
4.3(4.0) |
11~400~2 |
32.3 |
27.4 |
6.3 |
7.6 |
270~30~4 |
3.0 |
0.75~400 |
100 |
| 800 |
990~2770(2630) |
5.4(5.0) |
11~400~2 |
41.2 |
34.3 |
5.2 |
6.2 |
270~30~4 |
2.5 |
0.75~400 |
100 |
| 900 |
1110~2960(2780) |
7.1(6.7) |
11~400~3 |
72.5 |
60.8 |
4.3 |
5.2 |
420~30~4 |
2.3 |
2.2~400 |
100 |
| 1000 |
1230~3035(2845) |
8.0(7.5) |
11~400~3 |
28.4 |
65.7 |
4.0 |
4.8 |
420~30~4 |
2.2 |
1.5~400 |
100 |
| 1100 |
1340~3025(2860) |
10.2(9.7) |
15~400~3 |
100.9 |
83.3 |
4.2 |
5.1 |
420~30~4 |
1.9 |
1.5~400 |
100 |
| 1200 |
1460~3030(2855) |
12.2(11.5) |
15~400~3 |
122.5 |
101.9 |
3.5 |
4.2 |
420~50~4 |
2.9 |
1.5~400 |
100 |
@

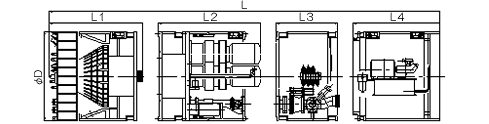

| Nominaldiameter (mm) | Number of split bodies | L1 | L2 | L3 | L4 | L5 | Min. size of arriving shaft | |
| Reach one side | Reach to both sides | |||||||
|
600 |
5 |
1065(910) |
1149 |
820 |
975 |
975 |
Σ2000(Σ2000) |
Σ2700(Σ2200) |
|
700 |
4 |
1115(1000) |
1256 |
700 |
1100 |
- |
Σ2200(Σ2200) |
Σ2900(Σ2400) |
|
800 |
4 |
1175(1035) |
1276 |
700 |
1100 |
- |
Σ2300(Σ2300) |
Σ2900(Σ2400) |
|
900 |
4 |
1255(1075) |
1291 |
770 |
1100 |
- |
Σ2300(Σ2300) |
Σ3000(Σ2500) |
|
1000 |
3 |
1325(1135) |
1310 |
700 |
- |
- |
Σ2400(Σ2400) |
Σ3100(Σ2600) |
|
1100 |
2 |
2465(2300) |
1590 |
- |
- |
- |
Σ3500(Σ3300) |
Σ4000(Σ3600) |
|
1200 |
2 |
2475(2300) |
1585 |
- |
- |
- |
Σ3500(Σ3400) |
Σ4100(Σ3700) |
@
