Pipe Jacking Machines
SLURRY TYPE
DT FOR ORDINARY SOILDT
600～3000mm

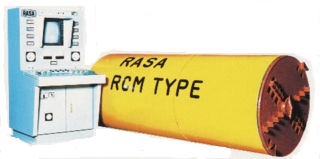

■ Standard Specifications of RCM（DT）
| I.D. | Dimensions (㎜) φD×L |
Weight (t) |
Power (kW ×set) |
Torque (kN･m) |
Revolution (min-1) |
Steering Jack (kN ×st ×set) |
Hydraulic unit (kW) |
Piping in shield body (mm) |
||
|---|---|---|---|---|---|---|---|---|---|---|
| 50Hz | 60Hz | 50Hz | 60Hz | |||||||
| φ600 | 780x2400 | 2.5 | 5.5x1 | 6.5 | 5.5 | 8.0 | 9.6 | 130x 30x 4 | 0.75 | 80 |
| φ700 | 905x2325 | 3.0 | 5.5x1 | 9.5 | 7.9 | 5.6 | 6.7 | 200x 30x 4 | 0.75 | 100 |
| φ800 | 983x2610 | 3.5 | 7.5x1 | 14 | 12 | 5.2 | 6.2 | 200x 30x 4 | 0.75 | 100 |
| φ900 | 1103x2250 | 4.0 | 3.7x2 | 21 | 17 | 3.5 | 4.2 | 270x 50x 4 | 0.75 | 100 |
| φ1000 | 1223x3620 | 4.5 | 5.5x2 | 24 | 20 | 4.4 | 5.3 | 270x 50x 4 | 0.75 | 100 |
| φ1100 | 1333x2450 | 5.5 | 7.5x2 | 35 | 29 | 4.2 | 5.0 | 420x 50x 4 | 1.5 | 100 |
| φ1200 | 1453x2515 | 6.0 | 7.5x2 | 46 | 37 | 3.2 | 3.9 | 420x 50x 4 | 1.5 | 100 |
| φ1350 | 1620x2840 | 7.0 | 11x2 | 65 | 55 | 3.2 | 3.9 | 420x 50x 4 | 1.5 | 100 |
| φ1500 | 1800x3050 | 9.0 | 15x2 | 91 | 75 | 3.2 | 3.9 | 270x 50x 8 | 3.7 | 150 |
| φ1650 | 1970x3202 | 11.0 | 18.5x2 | 122 | 101 | 3.0 | 3.6 | 420x 50x 8 | 3.7 | 150 |
| φ1800 | 2140x3200 | 14.0 | 18.5x2 | 139 | 116 | 2.6 | 3.1 | 420x 50x 8 | 3.7 | 150 |
| φ2000 | 2375x3340 | 18.0 | 22x2 | 240 | 200 | 1.8 | 2.1 | 550x100x 8 | 3.7 | 150 |
| φ2200 | 2610x3340 | 21.0 | 22x3 | 337 | 270 | 1.9 | 2.3 | 750x100x 8 | 3.7 | 150 |
| φ2400 | 2840x3340 | 28.0 | 22x3 | 337 | 270 | 1.9 | 2.3 | 750x100x 8 | 3.7 | 150 |
| φ2600 | 3060x3340 | 32.0 | 18.5x4 | 442 | 369 | 1.6 | 1.9 | 1000x100x 8 | 3.7 | 150 |
| φ2800 | 3300x3210 | 35.0 | 22x4 | 659 | 549 | 1.3 | 1.6 | 1000x100x 8 | 3.7 | 150 |
| φ3000 | 3530x3210 | 40.0 | 22x4 | 659 | 549 | 1.3 | 1.6 | 1000x100x12 | 3.7 | 150 |
