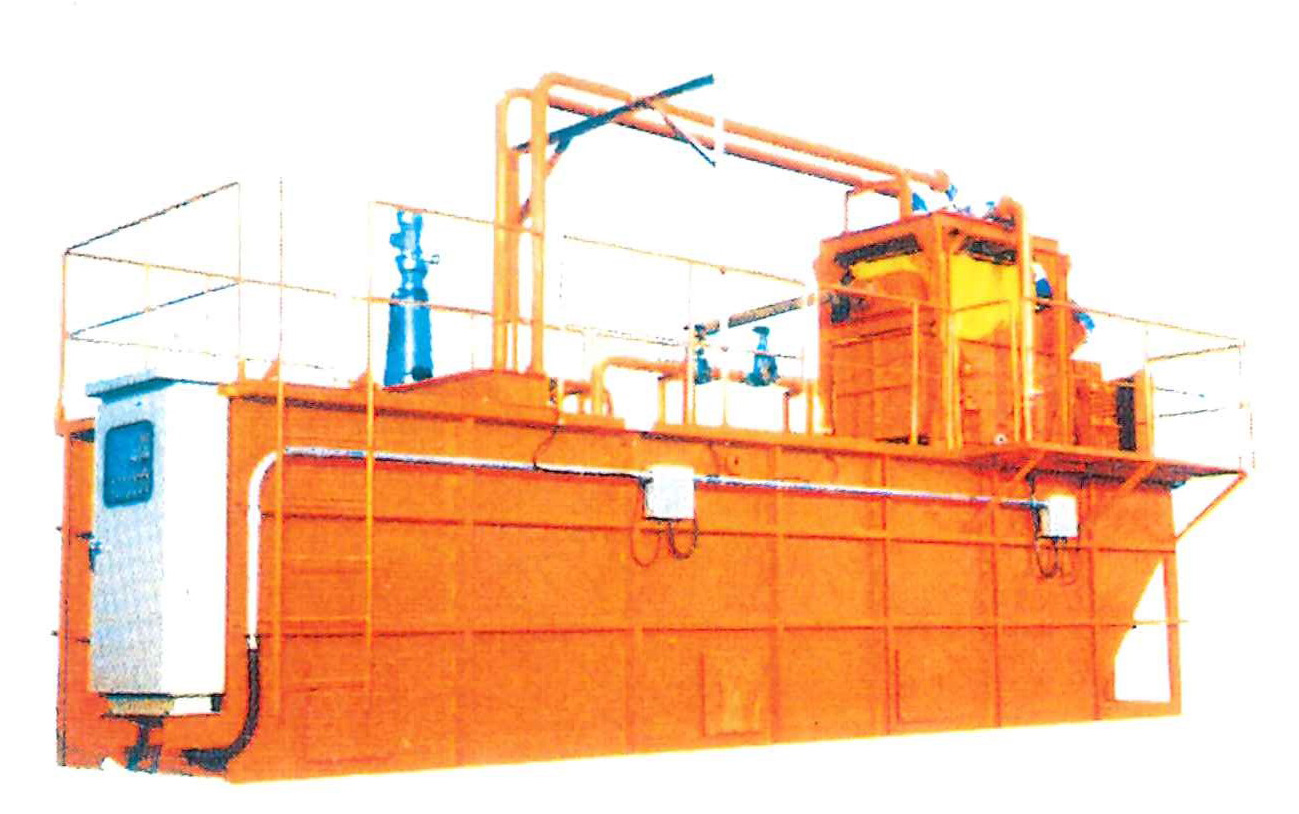

Treatment systemSand dehydrator
■ Standard Specifications of Sand dehydrator
| Item ＼ Model | MSD-0.5 | MSD-1 | USD-2 | USD-4 | ||
|---|---|---|---|---|---|---|
| Capacity (m3/min) | 0.45 | 0.9 | 1.8 | 3.6 | ||
| Wet type | Size (mm) | 500 x1500 x2D | 600 x1800 x2D | 750 x2400 x2D | 1200 x3600 x2D | |
| Vibrating screen | Power (kW) | 0.75x2 | 1.2x2 | 2.2x2 | 5.5x2 | |
| Wet Type cyclone (type x set) | MD-6 x1 | MD-9 x1 | MD-9 x2 | MD-9 x4 | ||
| Slurry Pomp Power (kW x set) | 7.5x1 | 11x1 | 15x2 | 22x2 | ||
| Regulating Circulation Tank (m3) | 2-tank System 4 | 2-tank System 10 | 4-tank System 27 | 2-tank System 30 | ||
| Agitator (kW x set) | 2.2x1 | 2.2x1 | 2.2x1 | 2.2x2 | ||
| Cross weight (t) | 2.0 | 3.5 | 10.5 | 14.5 | ||
| External dimensions (LxWxH) (m) | 3.1 x1.7 x2.3 | 4.2 x2.5 x3.9 | 9.4 x3.5 x4.3 | 9.4 x3.5 x4.9 | ||
| Feed pump (kW x set) | - | 3.7x1 1.5x1 | ||||
