DH | RASA Industries, LTD.

Pipe Jacking Machines

SLURRY TYPE

ITS TOUGHNESS IN PERFORMANCE BRINGS RELIABILITY UNICORN

600～2600mm

General

A series of UNICORN slurry pipe jacking machines are capable of handling pipe size (I.D.) from 250mm to 2600mm and of excavating through boulder,soft rock,medium hard rock,and hard rock layers. By changing its cutter disk, the machine can also be applied to the pipe jacking in the ordinary soil, hand soil, and cobble gravel layers.

Crushing mechanism

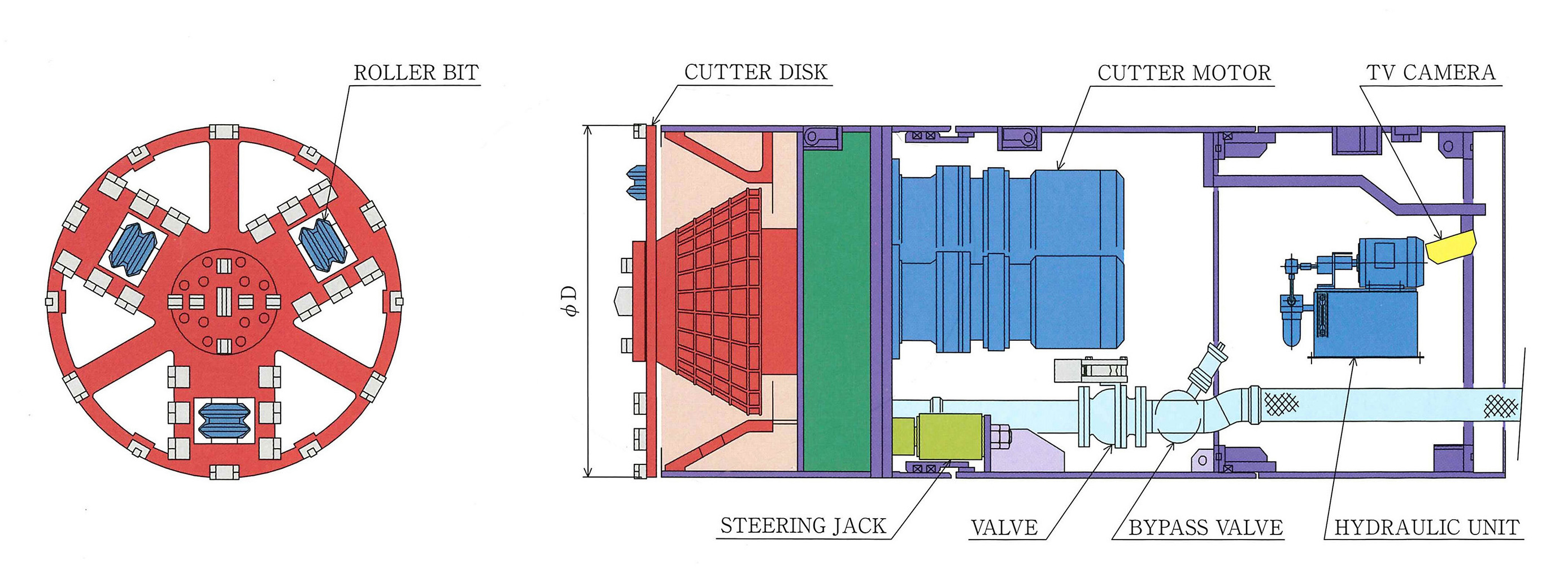

The machine adopts a two-stage crushing mechanism; that is, the primary crushing is performed with roller bits installed on the cutter disk that rotates at a large torque and the secondary crushing is performed with a robust cone crusher consisting of a mantle and cone cabling.

UNICORN SLURRY PIPE JACKING MACHINE FOR BOULDER AND ROCK LAYER APPLICATION

Three outstanding features

Powerful crushers
The primary and secondary crushing mechanisms that are driven by a large torque power are provided.

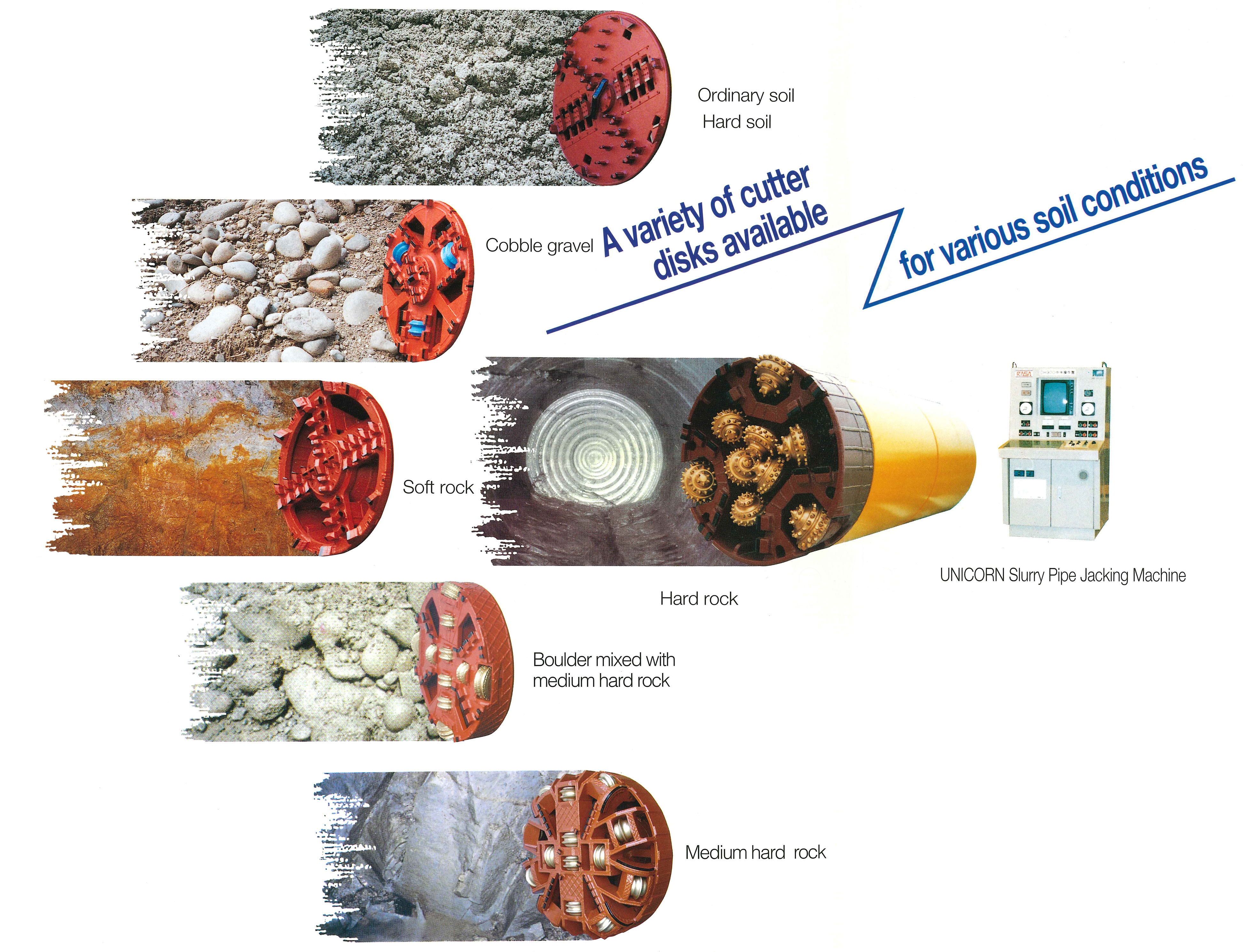

Greater Applicability
With a variety of cutter disks available. the machine can be used for excavating through various types of soil.
Economy
Its simple construction and remote control for various functions will reduce the running cost to a minimum.

■ Specifications of DH type machine

I.D.	Dimensions (㎜) φD×L	Weight (t)	Power (kW ×set)	Torque (kN･m)	Revolution (min^-1)	Steering Jack (kN ×st ×set)	Hydraulic unit (kW)	Piping in shield body (mm)
50Hz	60Hz	50Hz	60Hz
φ600	790x2485	3.6	7.5x2	19	16	7.6	9.1	160x 20x4	0.75	100
φ700	910x2575	4.0	11x2	33	28	6.4	7.6	270x 30x4	0.75	100
φ800	990x2575	5.0	7.5x3	42	35	5.2	6.2	270x 30x4	0.75	100
φ900	1110x2585	6.7	11x3	73	60	4.3	5.2	370x 30x4	2.2	100
φ1000	1230x2600	8.0	11x3	80	66	4.0	4.8	420x 30x4	1.5	100
φ1100	1340x2860	9.5	15x3	101	84	4.2	5.1	420x 30x4	1.5	100
φ1200	1460x2860	12.0	15x3	122	101	3.5	4.2	420x 50x4	1.5	100
φ1350	1630x3015	13.0	22x3	201	168	3.1	3.8	750x 50x4	2.2	150
φ1500	1810x3105	17.0	22x3	250	209	2.5	3.0	750x 50x4	3.7	150
φ1650	1980x3150	21.0	22x3	314	262	2.0	2.4	1000x 50x4	3.7	150
φ1800	2150x3320	25.0	18.5x4	411	342	1.7	2.1	630x 50x8	3.7	150
φ2000	2375x3600	28.0	22x4	557	464	1.5	1.8	750x100 x8	3.7	150
φ2200	2610x3920	37.0	30x3	561	467	1.5	1.8	1000x100 x8	3.7	150
φ2400	2840x3990	41.5	30x4	758	632	1.5	1.8	1000x100 x8	3.7	150
φ2600	3070x3990	47.0	30x4	850	730	1.3	1.6	1000x100 x8	5.5	150

I.D.

Dimensions
(㎜)
φD×L

Weight
(t)

Power
(kW ×set)

Torque
(kN･m)

Revolution
(min^-1)

Steering
Jack
(kN ×st ×set)

Hydraulic
unit
(kW)

Piping in
shield body
(mm)

50Hz

60Hz

50Hz

60Hz

φ600

790x2485

3.6

7.5x2

7.6

9.1

160x 20x4

0.75

100

φ700

910x2575

4.0

11x2

6.4

7.6

270x 30x4

0.75

100

φ800

990x2575

5.0

7.5x3

5.2

6.2

270x 30x4

0.75

100

φ900

1110x2585

6.7

11x3

4.3

5.2

370x 30x4

2.2

100

φ1000

1230x2600

8.0

11x3

4.0

4.8

420x 30x4

1.5

100

φ1100

1340x2860

9.5

15x3

101

4.2

5.1

420x 30x4

1.5

100

φ1200

1460x2860

12.0

15x3

122

101

3.5

4.2

420x 50x4

1.5

100

φ1350

1630x3015

13.0

22x3

201

168

3.1

3.8

750x 50x4

2.2

150

φ1500

1810x3105

17.0

22x3

250

209

2.5

3.0

750x 50x4

3.7

150

φ1650

1980x3150

21.0

22x3

314

262

2.0

2.4

1000x 50x4

3.7

150

φ1800

2150x3320

25.0

18.5x4

411

342

1.7

2.1

630x 50x8

3.7

150

φ2000

2375x3600

28.0

22x4

557

464

1.5

1.8

750x100 x8

3.7

150

φ2200

2610x3920

37.0

30x3

561

467

1.5

1.8

1000x100 x8

3.7

150

φ2400

2840x3990

41.5

30x4

758

632

1.5

1.8

1000x100 x8

3.7

150

φ2600

3070x3990

47.0

30x4

850

730

1.3

1.6

1000x100 x8

5.5

150

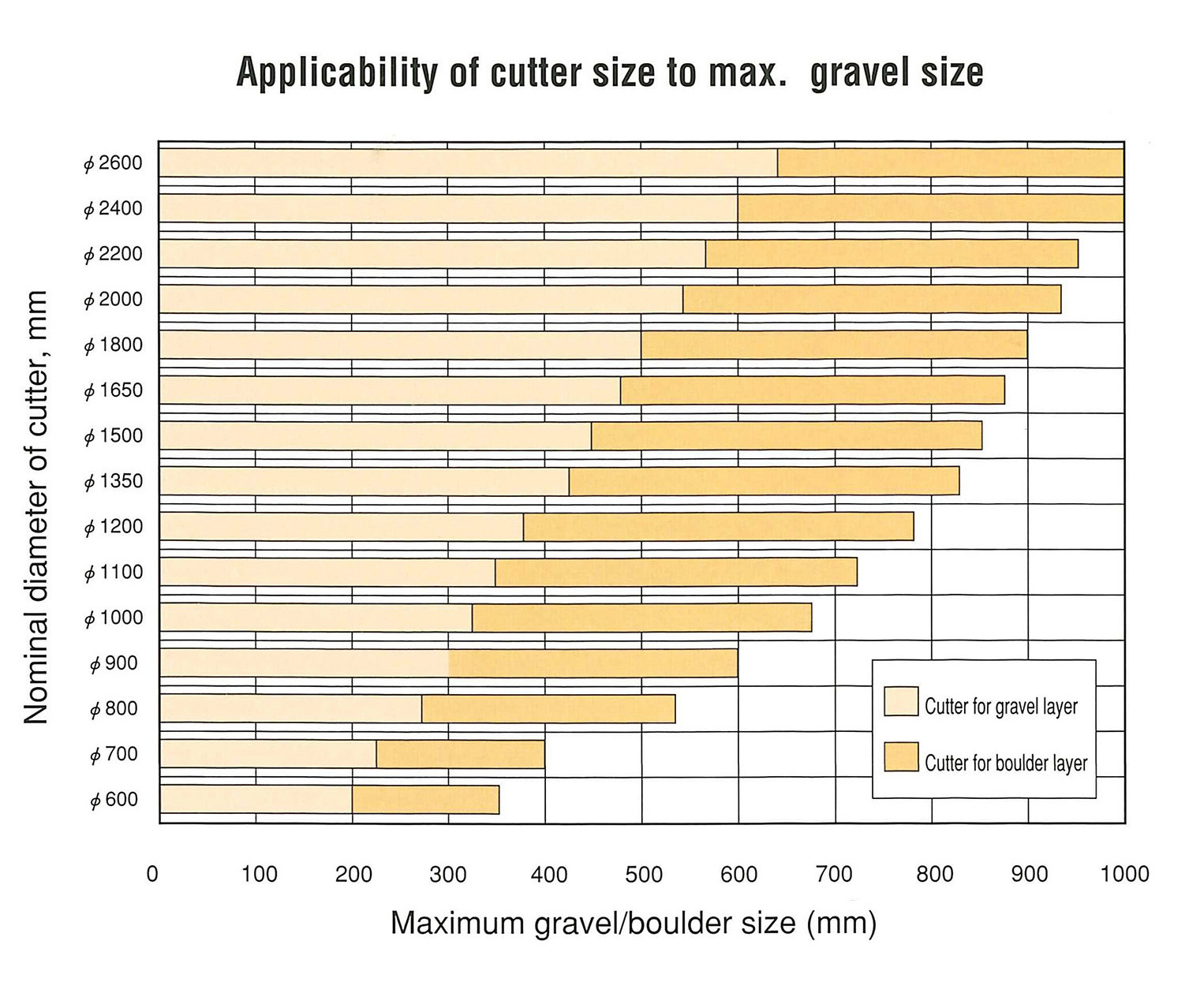

• Numbers in parenthese represent the machine for gravel layer application.
• Heavy duty cutter face for boulder and rock can be fixed by on the above DH type machine.

RASA INDUSTRIES, LTD.
Akihabara Daibiru Building.,1-18-13, Soto-Kanda, Chiyoda-ku, Tokyo 101-0021, Japan
Phone : +81-3-3258-1826
